Brand New Coil Pipe Assembly For Olympus GIF-2TH180 Therapeutic Gastroscope

Coil Pipe Assembly For Olympus GIF-2TH180 Therapeutic Gastroscope

► Brief Description

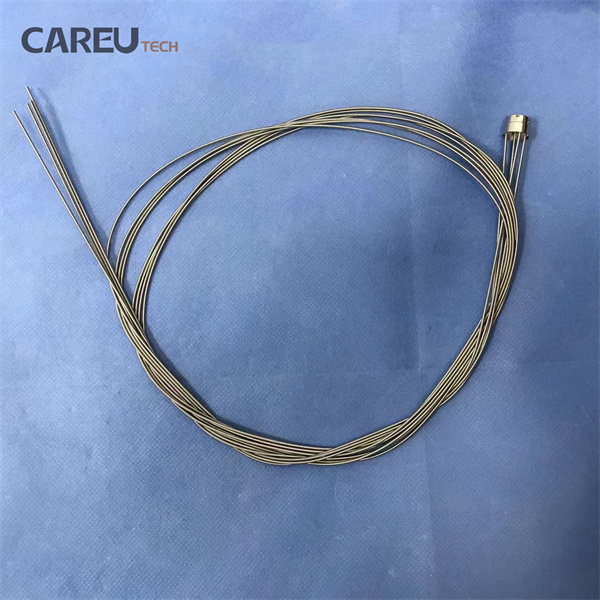

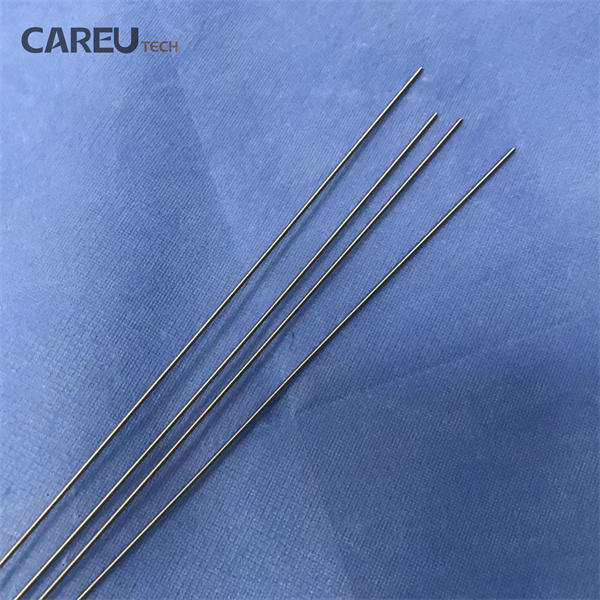

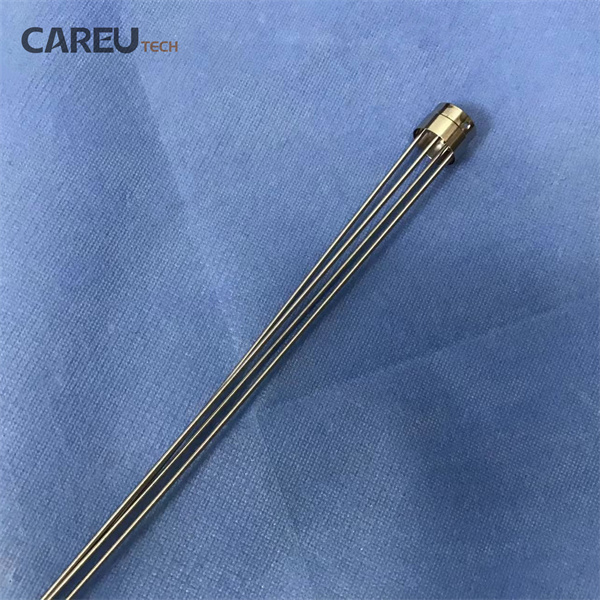

The Coil Pipe Assembly is a critical internal structural component located inside the insertion tube of the Olympus GIF-2TH180 therapeutic video gastroscope. It typically consists of high-grade, tightly wound medical stainless steel coils (such as 303 or 302 stainless steel) brazed.
Serving as the protective internal skeleton and guiding channel for the endoscope, it houses and shields delicate inner components—such as instrument/biopsy channels, angulation control wires, air/water tubes, and light guide bundles—while providing the physical flexibility and torque stability required during complex GI tract procedures.

► Features

• Protection of Internal Elements:Acts as a robust armored sleeve that protects fragile internal channels (such as the dual instrument/biopsy channels and optical fibers) from being crushed, pinched, or over-stretched when the endoscope bends.
• Structural Support & Flexibility:Delivers the ideal balance of longitudinal rigidity, push-ability, and lateral flexibility, allowing the endoscope to navigate the sharp curves of the upper gastrointestinal tract smoothly.
• Torque Transmission:Ensures that rotational movements applied at the control body translate accurately to the distal tip without twisting or losing momentum.
• Channel Guidance:Provides a smooth, friction-minimized pathway for therapeutic accessories (like biopsy forceps, snares, or injection needles) to pass safely through the dual working channels of the GIF-2TH180.

► Specification

Why is the Coil Pipe Assembly particularly critical for the GIF-2TH180 model?
A: The GIF-2TH180 is a dual-channel therapeutic gastroscope (featuring dual working channels of 2.8 mm and 3.7 mm). Its coil pipe assembly is engineered with specialized dimensions to safely accommodate multiple internal lumens simultaneously without compromising the bending performance or structural integrity of the wider insertion tube.

When does a Coil Pipe Assembly need to be replaced or repaired?

A: It typically requires replacement during major endoscope overhauls if there are symptoms such as:

• Kinking, crushing, or visual deformation along the insertion tube.

• Loss of smooth torque transmission or stiffness during angulation.

• Internal channel compromise or recurring positive leak test results originating from structural trauma to the insertion section.

► More service

Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.

CareUtech is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.
Shipping and packing

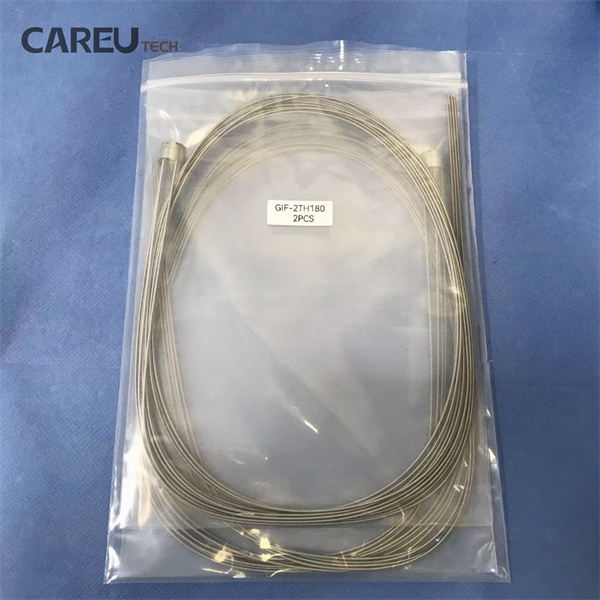

All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
