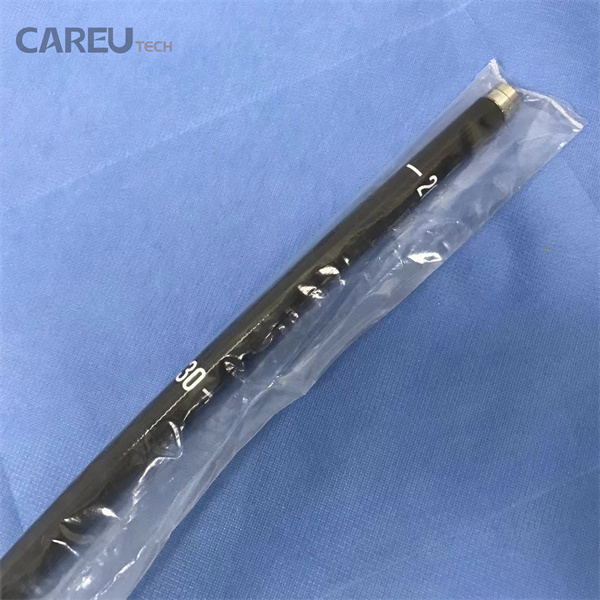

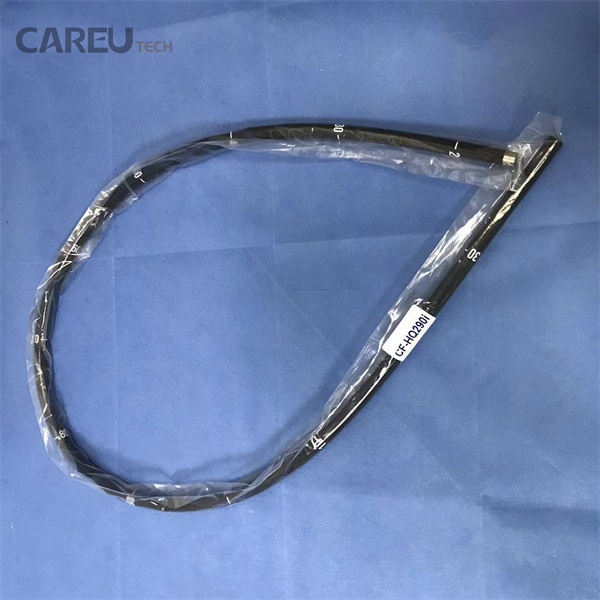

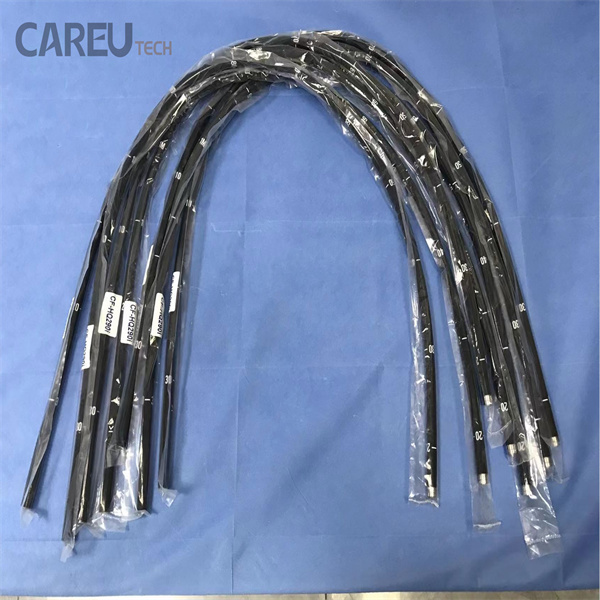

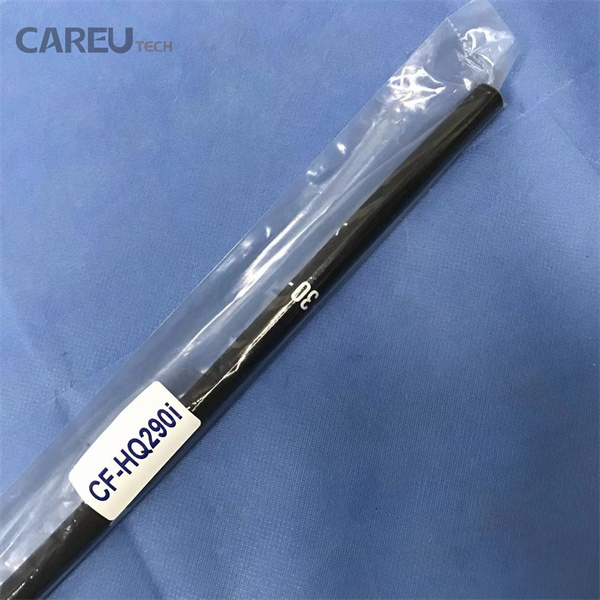

Insertion Tube For Olympus CF-HQ290I Colonoscope
► Brief Description
The insertion tube is the long, flexible main body of the Olympus CF-HQ290I video colonoscope (where the “I” designation typically denotes the intermediate/shorter working length model compared to the long “L” version). Engineered with advanced proprietary technologies, it houses internal channels, optical fibers, and control wires while providing an optimal balance of flexibility and pushability for navigating the colon.
► Features
- Variable Stiffness:Allows the operator to manually adjust the rigidity or flexibility of the insertion tube to match specific patient anatomies and loop-prone colonic segments.
- Passive Bending & High Force Transmission: Helps the tube passively adapt to sharp colonic curves and efficiently transmit pushing forces forward without buckling.
- Channel Housing & Passage: Protects and routes the large 3.7 mm instrument channel, enabling the smooth passage of various therapeutic accessories (such as snares, biopsy forceps, and injection needles) while retaining strong suction performance.
- Internal Protection & Utilities: Encapsulates delicate optical components, light guide bundles, air/water feed tubes, and angulation control wires, ensuring complete isolation from bodily fluids and structural stability throughout clinical and reprocessing cycles.
► Specification
| Brand | Olympus |
| Model | CF-HQ290I |
| Series | Insertion Tube |
| Condition | Brand new |
| Insertion Tube Outer Diameter (OD) | 12.8 mm |
| Distal End Outer Diameter | 13.2 mm |
| Working Length | 1,330 mm |
| Total Length | 1,655 mm |
| Instrument (Biopsy) Channel Inner Diameter | 3.7 mm |
| MOQ | 1 Piece |
| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
All new aftermarket parts come with a 1-Year warranty. Quality is the first thing we consider. Check out our Warranty Assistance for more details.
All expedited shipping so you can get your medical machine back in action, fast. Check out our Shipping Policy for more details.
We prioritize your satisfaction. If your order doesn't meet your expectations within 90 days, you may be eligible for a refund. See our Easy Return Policy for details.
Description
Insertion Tube For Olympus CF-HQ290I Colonoscope
► Brief Description
The insertion tube is the long, flexible main body of the Olympus CF-HQ290I video colonoscope (where the “I” designation typically denotes the intermediate/shorter working length model compared to the long “L” version). Engineered with advanced proprietary technologies, it houses internal channels, optical fibers, and control wires while providing an optimal balance of flexibility and pushability for navigating the colon.
► Features
- Variable Stiffness:Allows the operator to manually adjust the rigidity or flexibility of the insertion tube to match specific patient anatomies and loop-prone colonic segments.
- Passive Bending & High Force Transmission: Helps the tube passively adapt to sharp colonic curves and efficiently transmit pushing forces forward without buckling.
- Channel Housing & Passage: Protects and routes the large 3.7 mm instrument channel, enabling the smooth passage of various therapeutic accessories (such as snares, biopsy forceps, and injection needles) while retaining strong suction performance.
- Internal Protection & Utilities: Encapsulates delicate optical components, light guide bundles, air/water feed tubes, and angulation control wires, ensuring complete isolation from bodily fluids and structural stability throughout clinical and reprocessing cycles.
► Specification
| Brand | Olympus |
| Model | CF-HQ290I |
| Series | Insertion Tube |
| Condition | Brand new |
| Insertion Tube Outer Diameter (OD) | 12.8 mm |
| Distal End Outer Diameter | 13.2 mm |
| Working Length | 1,330 mm |
| Total Length | 1,655 mm |
| Instrument (Biopsy) Channel Inner Diameter | 3.7 mm |
| MOQ | 1 Piece |
| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
►FAQ
What are the common signs of damage to an insertion tube?
-
A: Frequent signs of wear or failure include:
-
Kinks or Cracks: Physical buckling or deep creases in the outer polyurethane/polymer sheath.
-
Loss of Variable Stiffness Function: Failure of the internal stiffness mechanism to lock or adjust properly.
-
Internal Channel Leaks / Blockages: Damage resulting in fluid ingress during leak testing or obstruction of the 3.7 mm biopsy channel.
-
Peeling or Bubbling: Degradation of the outer coating due to aggressive chemical exposure or thermal stress during reprocessing.
-
► More service
Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
► About Us
CareUtech is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.
Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
►What we can do
Product details
In case you have any questions or concerns, don’t be shy to get in touch with our support team. Our experts will help you select the right type of endoscope accessories, providing you with the best advice possible.
Product details
In case you have any questions or concerns, don’t be shy to get in touch with our support team. Our experts will help you select the right type of endoscope accessories, providing you with the best advice possible.
Description
Insertion Tube For Olympus CF-HQ290I Colonoscope
► Brief Description
The insertion tube is the long, flexible main body of the Olympus CF-HQ290I video colonoscope (where the “I” designation typically denotes the intermediate/shorter working length model compared to the long “L” version). Engineered with advanced proprietary technologies, it houses internal channels, optical fibers, and control wires while providing an optimal balance of flexibility and pushability for navigating the colon.
► Features
- Variable Stiffness:Allows the operator to manually adjust the rigidity or flexibility of the insertion tube to match specific patient anatomies and loop-prone colonic segments.
- Passive Bending & High Force Transmission: Helps the tube passively adapt to sharp colonic curves and efficiently transmit pushing forces forward without buckling.
- Channel Housing & Passage: Protects and routes the large 3.7 mm instrument channel, enabling the smooth passage of various therapeutic accessories (such as snares, biopsy forceps, and injection needles) while retaining strong suction performance.
- Internal Protection & Utilities: Encapsulates delicate optical components, light guide bundles, air/water feed tubes, and angulation control wires, ensuring complete isolation from bodily fluids and structural stability throughout clinical and reprocessing cycles.
► Specification
| Brand | Olympus |
| Model | CF-HQ290I |
| Series | Insertion Tube |
| Condition | Brand new |
| Insertion Tube Outer Diameter (OD) | 12.8 mm |
| Distal End Outer Diameter | 13.2 mm |
| Working Length | 1,330 mm |
| Total Length | 1,655 mm |
| Instrument (Biopsy) Channel Inner Diameter | 3.7 mm |
| MOQ | 1 Piece |
| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
►FAQ
What are the common signs of damage to an insertion tube?
-
A: Frequent signs of wear or failure include:
-
Kinks or Cracks: Physical buckling or deep creases in the outer polyurethane/polymer sheath.
-
Loss of Variable Stiffness Function: Failure of the internal stiffness mechanism to lock or adjust properly.
-
Internal Channel Leaks / Blockages: Damage resulting in fluid ingress during leak testing or obstruction of the 3.7 mm biopsy channel.
-
Peeling or Bubbling: Degradation of the outer coating due to aggressive chemical exposure or thermal stress during reprocessing.
-
► More service
Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
► About Us
CareUtech is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.
Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
►What we can do
Customer Reviews
Related Products
Fix Once Right, Save Replacement Costs
Flexible endoscopes are among the most advanced and most used devices in the healthcare environment. As their use continues to expand, they are a critical component in improving patient surgical outcomes.
However, without the right quality assurance services, they can also present infection risks to customers, leading to significant avoidable service costs over the life of the device.
Long-term replacement or good accessory maintenance is necessary to extend the life of your endoscope equipment, and CareU Tech is committed to reducing service costs and minimizing patient risk so that repaired endoscopes always meet optimal performance standards.
If you have any needs for flexible endoscope accessories, such as insertion tubes, light guides, biopsy channels, air/water channels, flexures and assemblies, flex rubbers and meshes, etc., please contact our sales team and we will be here to meet your needs!
