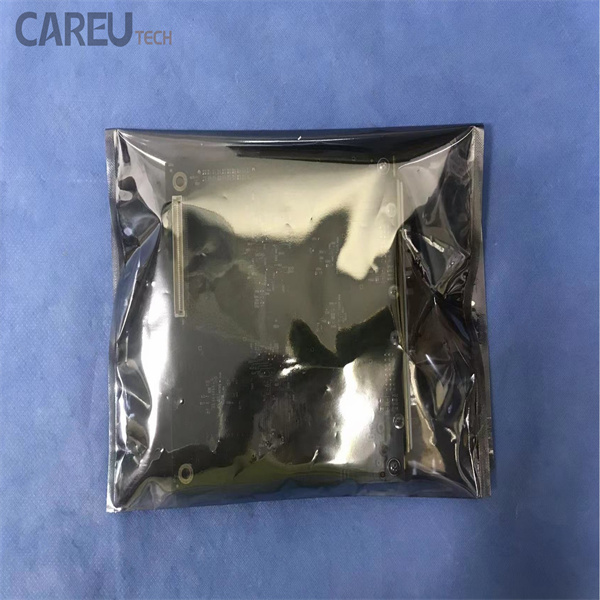

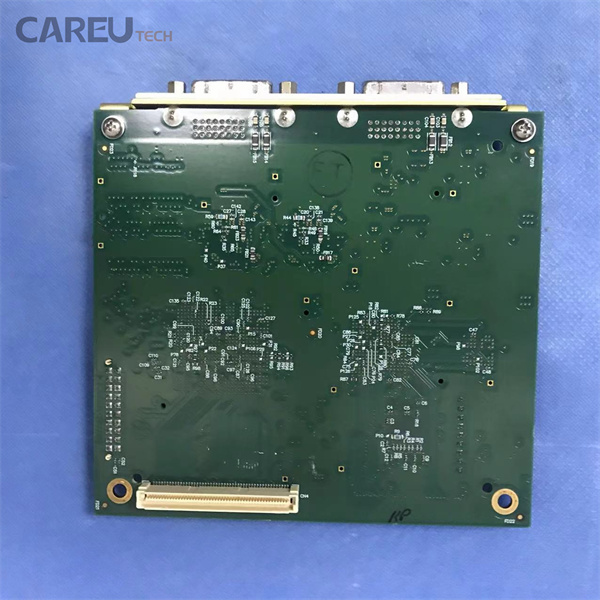

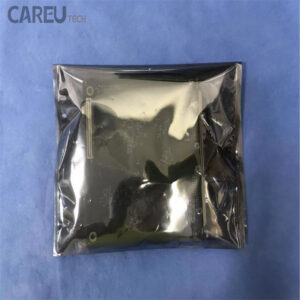

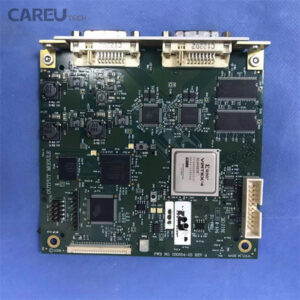

Main Board For STORZ 22201020 IMAGE1 HUB HD Processor
► Brief Description
The main board for the Karl Storz 22201020 serves as the central processing unit inside the IMAGE1 HUB HD Camera Control Unit (CCU). As the core printed circuit board (PCB) of the console, it is responsible for managing high-definition image processing, signal conversion, system communication, and input/output control during endoscopic, laparoscopic, and arthroscopic procedures.
►Features
- High-Definition Video Processing
- Signal Conversion & Routing
- System Integration (SCB Control)
- Data & Media Management
► Specification
| Brand | STORZ |
| Model | 22201020 |
| Condition | Brand new |
| Series | Main Board |
| Maximum Resolution | 1920 x 1080 pixels (Progressive Scan) |
| MOQ | 1 Piece |
| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
All new aftermarket parts come with a 1-Year warranty. Quality is the first thing we consider. Check out our Warranty Assistance for more details.
All expedited shipping so you can get your medical machine back in action, fast. Check out our Shipping Policy for more details.
We prioritize your satisfaction. If your order doesn't meet your expectations within 90 days, you may be eligible for a refund. See our Easy Return Policy for details.
Description
Main Board For STORZ 22201020 IMAGE1 HUB HD Processor
► Brief Description
The main board for the Karl Storz 22201020 serves as the central processing unit inside the IMAGE1 HUB HD Camera Control Unit (CCU). As the core printed circuit board (PCB) of the console, it is responsible for managing high-definition image processing, signal conversion, system communication, and input/output control during endoscopic, laparoscopic, and arthroscopic procedures.
►Features
- High-Definition Video Processing
- Signal Conversion & Routing
- System Integration (SCB Control)
- Data & Media Management
► Specification
| Brand | STORZ |
| Model | 22201020 |
| Condition | Brand new |
| Series | Main Board |
| Maximum Resolution | 1920 x 1080 pixels (Progressive Scan) |
| MOQ | 1 Piece |
| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
► FAQ
What are the common symptoms of a faulty main board in a STORZ 22201020 console?
-
Answer: Common indicators of a failing or damaged main board include:
-
Complete failure to power on or frequent unexpected reboots.
-
No video output or abnormal display artifacts (e.g., green screens, scrambling, vertical/horizontal lines).
-
Inability to recognize connected camera heads (e.g., H3-Z series) or external peripherals.
-
Error codes or freezing during the initialization/boot-up sequence.
-
Failure to save user settings or communicate via the SCB network.
-
What causes the main board in the 22201020 CCU to fail?
-
Answer: Primary causes include:
-
Power surges or electrical fluctuations.
-
Normal component aging (such as degradation of electrolytic capacitors or SMD components).
-
Liquid ingress or internal contamination (dust, debris, or moisture from hospital environments).
-
Electrostatic discharge (ESD) during improper handling or maintenance.
-
