OLYMPUS CF-H180AL Electronic Colonoscope For Repair
Apple Shopping Event
Hurry and get discounts up to 20% Read more
► Brief Description
Inspection Results:

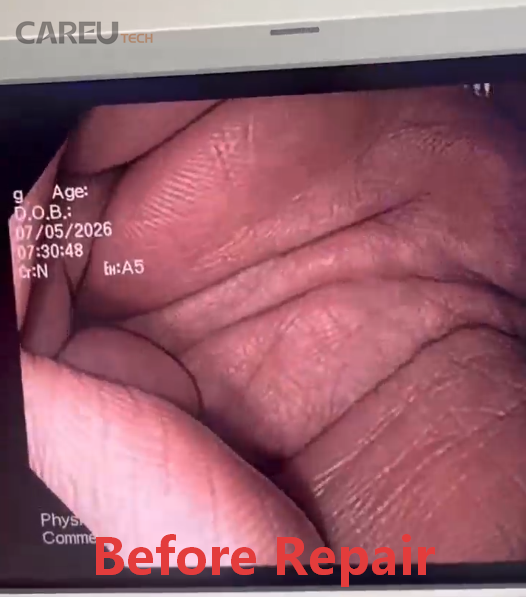

1. The image is dark, and the CCD is aged.
2. One branch of the light beam is disconnected.

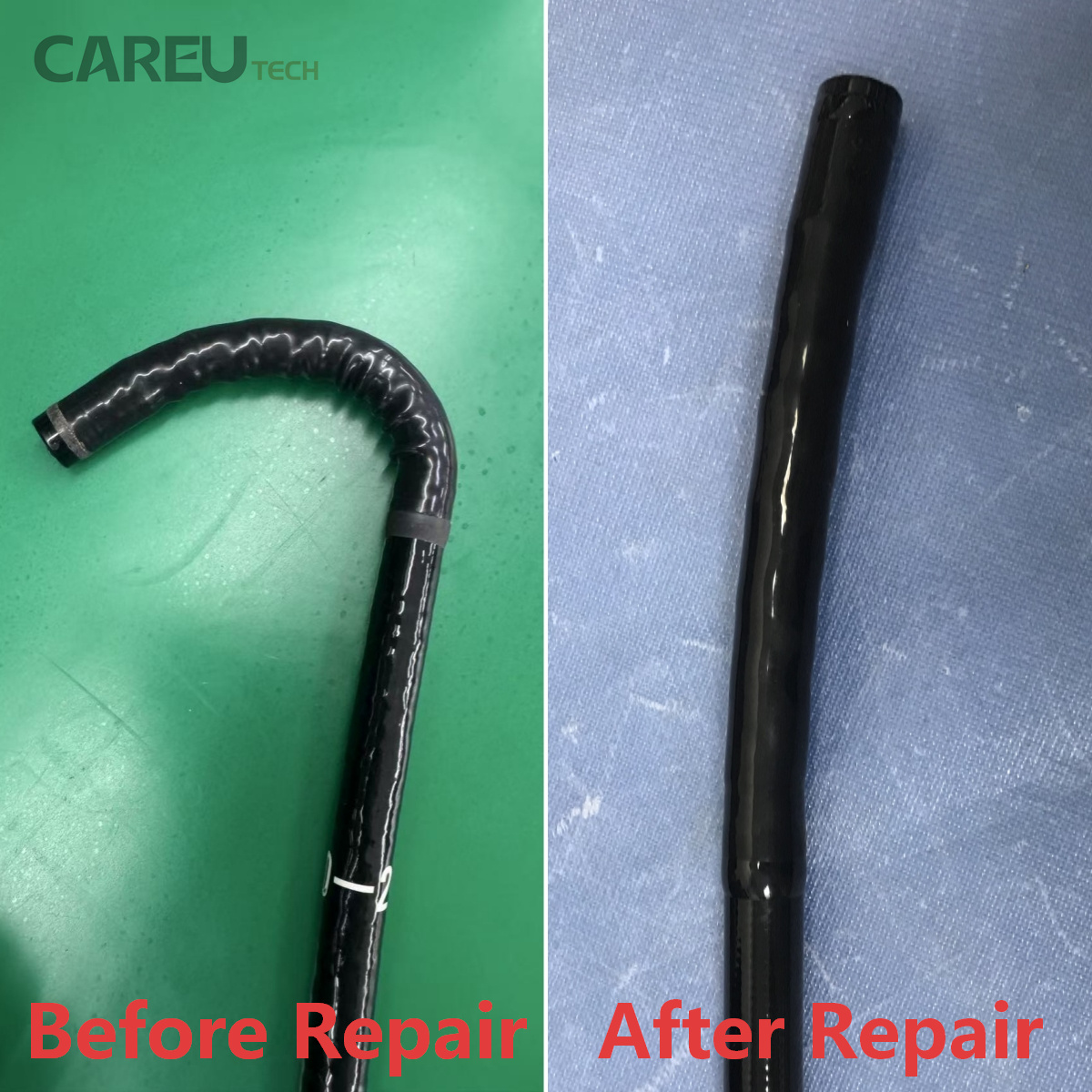

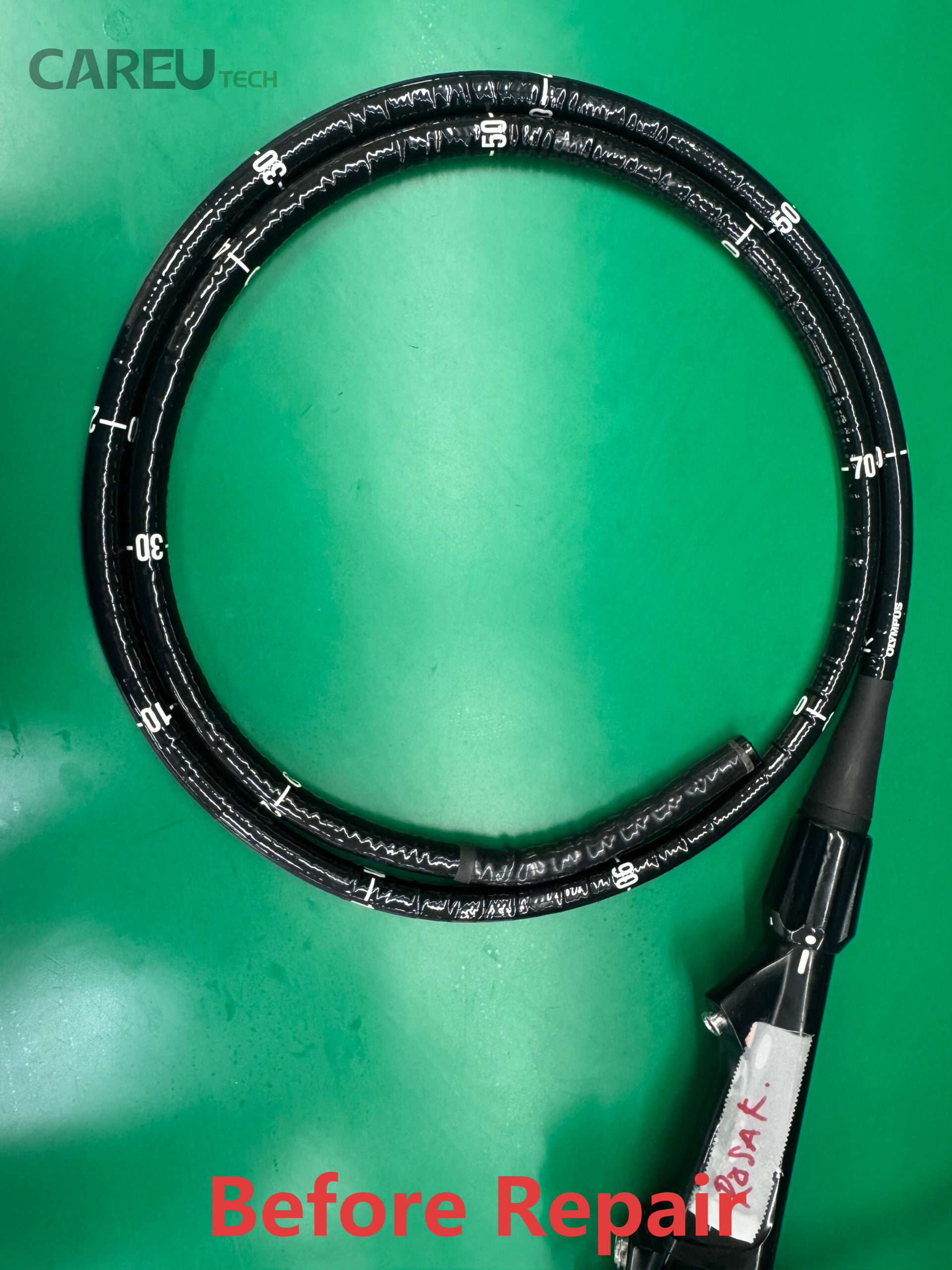

3. The insertion tube is aged and wrinkled.
4. The lower angle is malfunctioning, the other angles are tight, and the snake bone is deformed.
5. The light guide tube is slightly wrinkled.
Solution:

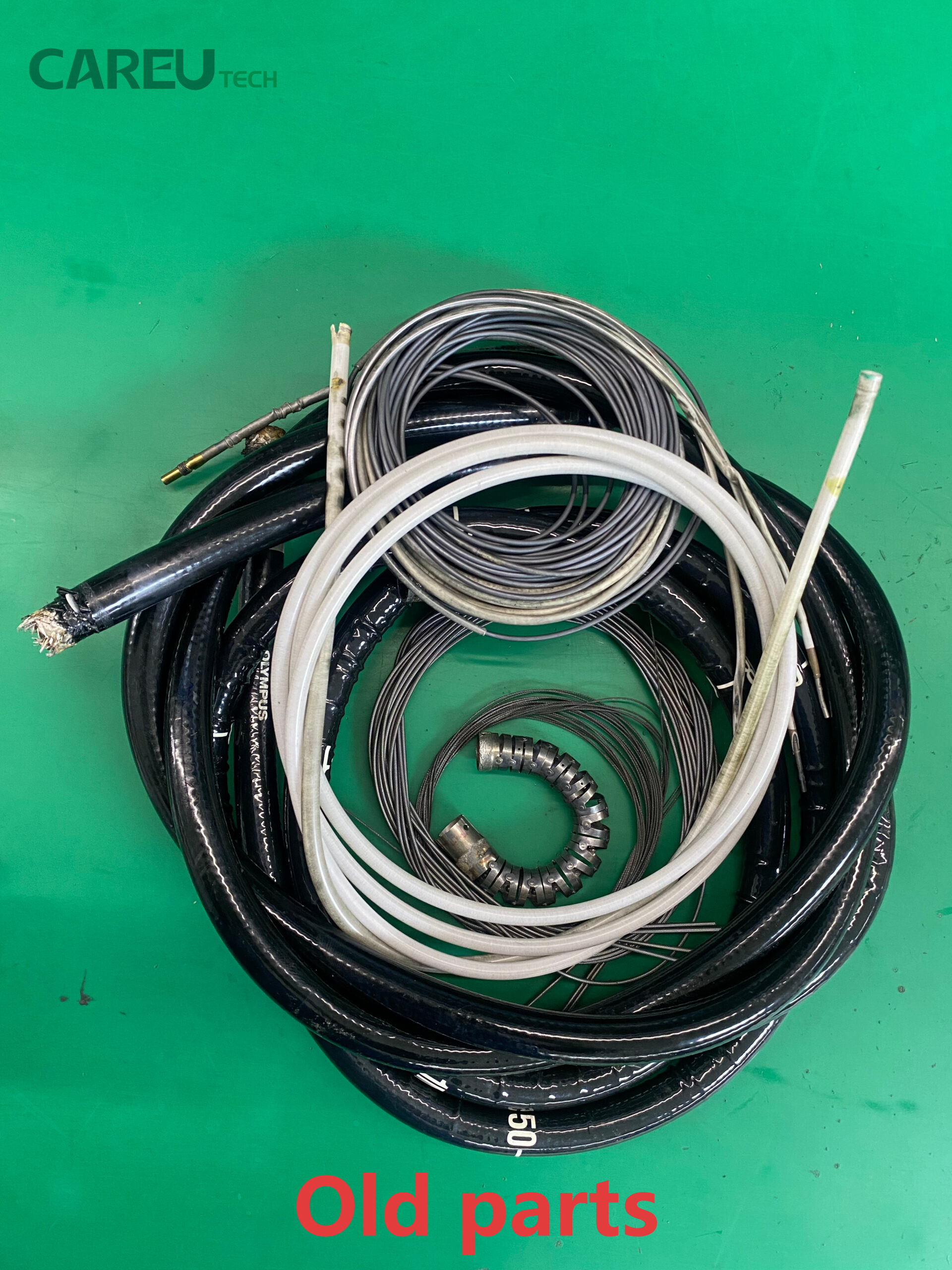

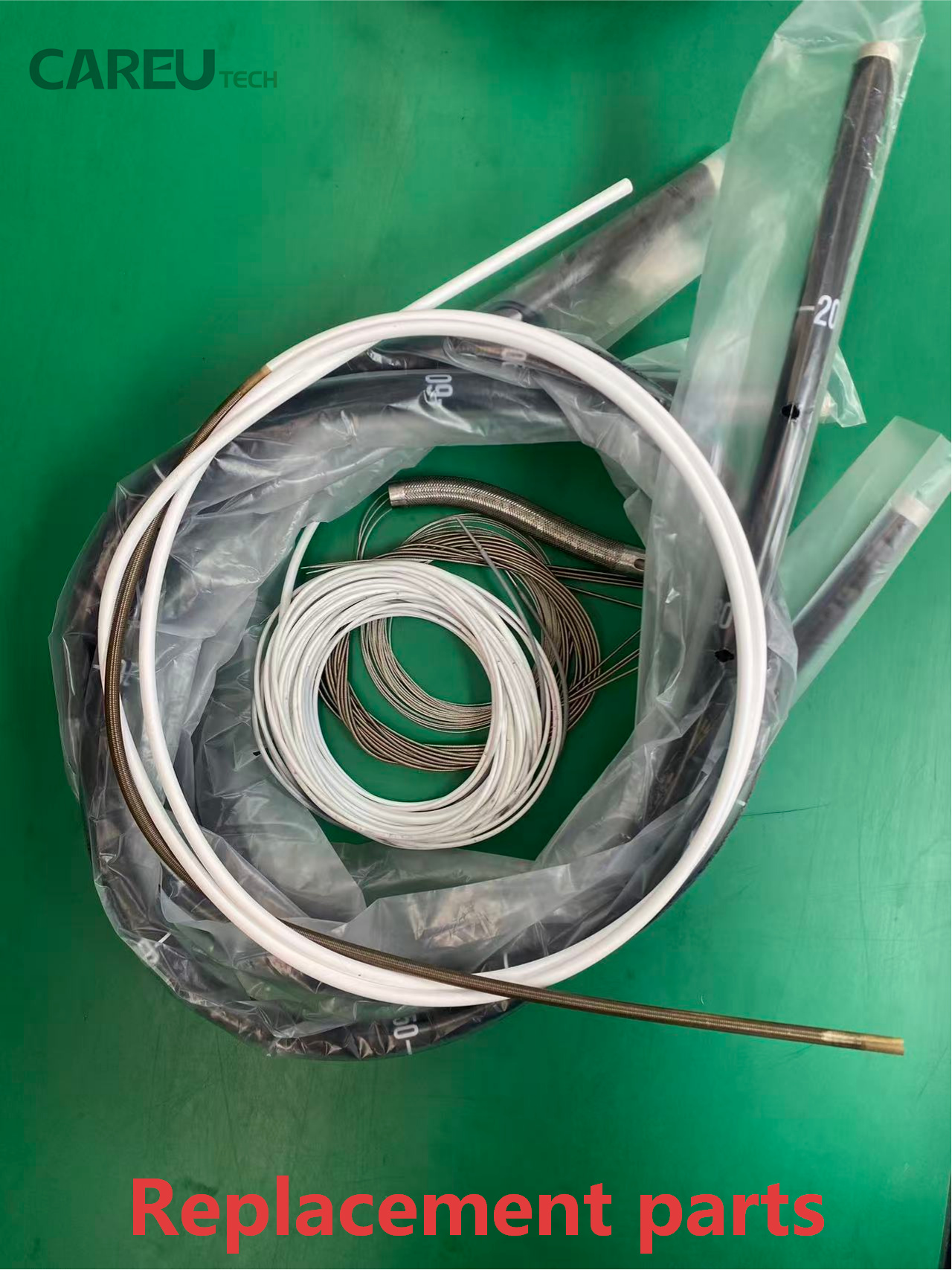

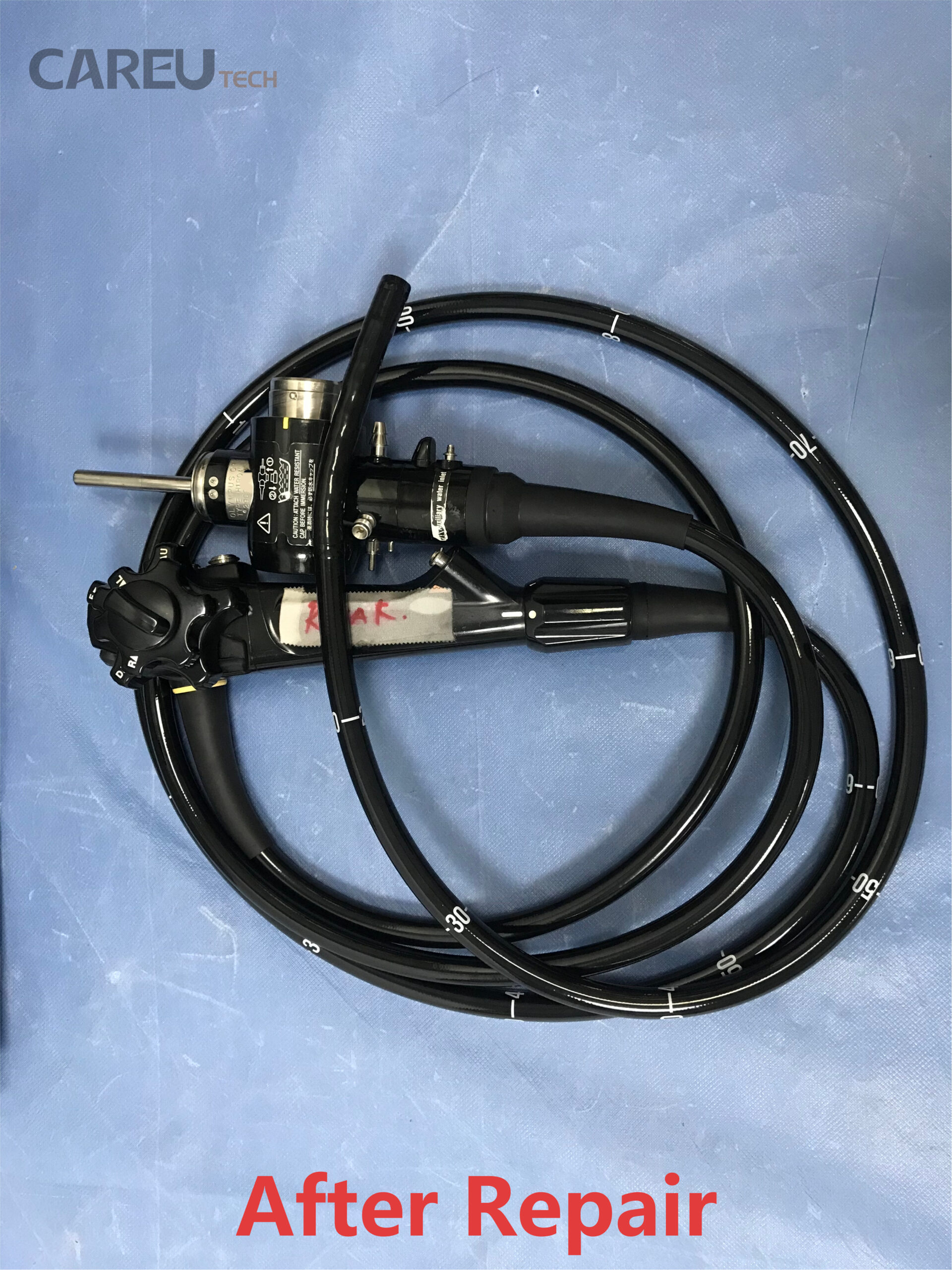

Repair and Replacement: CCD, light bundle, insertion tube, biopsy tube, snake bone, steel wire, helix tube, light guide tube, rubber.
All new aftermarket parts come with a 1-Year warranty. Quality is the first thing we consider. Check out our Warranty Assistance for more details.
All expedited shipping so you can get your medical machine back in action, fast. Check out our Shipping Policy for more details.
We prioritize your satisfaction. If your order doesn't meet your expectations within 90 days, you may be eligible for a refund. See our Easy Return Policy for details.
Description
OLYMPUS CF-H180AL Electronic Colonoscope For Repair
► Brief Description
Inspection Results:
1. The image is dark, and the CCD is aged.
2. One branch of the light beam is disconnected.
3. The insertion tube is aged and wrinkled.
4. The lower angle is malfunctioning, the other angles are tight, and the snake bone is deformed.
5. The light guide tube is slightly wrinkled.
Solution:
Repair and Replacement: CCD, light bundle, insertion tube, biopsy tube, snake bone, steel wire, helix tube, light guide tube, rubber.
► Common issues with OLYMPUS CF-H180AL
- Image & Optical System Faults
- Light Guide System Faults
- Angulation & Mechanical System Faults
- Air/Water & Suction Channel Faults
- Structural & Physical Damage
►FAQ
Can the outer sheath (insertion tube) be repaired if it becomes wrinkled or blistered from chemical disinfectants?
A: No, a blistered or wrinkled outer jacket cannot be localized-repaired. Chemical damage changes the structural integrity and flexibility of the insertion tube, which compromises patient safety. The scope requires a complete insertion tube replacement (re-tubing).
The video image is blurry and flickering when I articulate the scope. Can this be fixed without replacing the entire CCD?
A: For the blurring: If the image is permanently cloudy, it is usually internal humidity (fluid invasion) or a scratched objective lens. If it is just fluid, baking/drying the optics section might work, but if the lens is etched, it requires replacement.
-
For the flickering: This points to intermittent wire breakage inside the video cable or insertion tube. While sometimes a loose connector at the scope plug can be re-soldered, a fractured wire bundle deeper in the tube usually requires a complete video cable rebuild or replacement.
If your instrument has any of the above problems or others, please feel free to contact us for assistance. We will do our best to help you solve the issue.
► About Us
CareUtech is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.
Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
►What we can do
Product details
In case you have any questions or concerns, don’t be shy to get in touch with our support team. Our experts will help you select the right type of endoscope accessories, providing you with the best advice possible.
Product details
In case you have any questions or concerns, don’t be shy to get in touch with our support team. Our experts will help you select the right type of endoscope accessories, providing you with the best advice possible.
Description
OLYMPUS CF-H180AL Electronic Colonoscope For Repair
► Brief Description
Inspection Results:
1. The image is dark, and the CCD is aged.
2. One branch of the light beam is disconnected.
3. The insertion tube is aged and wrinkled.
4. The lower angle is malfunctioning, the other angles are tight, and the snake bone is deformed.
5. The light guide tube is slightly wrinkled.
Solution:
Repair and Replacement: CCD, light bundle, insertion tube, biopsy tube, snake bone, steel wire, helix tube, light guide tube, rubber.
► Common issues with OLYMPUS CF-H180AL
- Image & Optical System Faults
- Light Guide System Faults
- Angulation & Mechanical System Faults
- Air/Water & Suction Channel Faults
- Structural & Physical Damage
►FAQ
Can the outer sheath (insertion tube) be repaired if it becomes wrinkled or blistered from chemical disinfectants?
A: No, a blistered or wrinkled outer jacket cannot be localized-repaired. Chemical damage changes the structural integrity and flexibility of the insertion tube, which compromises patient safety. The scope requires a complete insertion tube replacement (re-tubing).
The video image is blurry and flickering when I articulate the scope. Can this be fixed without replacing the entire CCD?
A: For the blurring: If the image is permanently cloudy, it is usually internal humidity (fluid invasion) or a scratched objective lens. If it is just fluid, baking/drying the optics section might work, but if the lens is etched, it requires replacement.
-
For the flickering: This points to intermittent wire breakage inside the video cable or insertion tube. While sometimes a loose connector at the scope plug can be re-soldered, a fractured wire bundle deeper in the tube usually requires a complete video cable rebuild or replacement.
If your instrument has any of the above problems or others, please feel free to contact us for assistance. We will do our best to help you solve the issue.
► About Us
CareUtech is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.
Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
►What we can do
Customer Reviews
Related Products
Fix Once Right, Save Replacement Costs
Flexible endoscopes are among the most advanced and most used devices in the healthcare environment. As their use continues to expand, they are a critical component in improving patient surgical outcomes.
However, without the right quality assurance services, they can also present infection risks to customers, leading to significant avoidable service costs over the life of the device.
Long-term replacement or good accessory maintenance is necessary to extend the life of your endoscope equipment, and CareU Tech is committed to reducing service costs and minimizing patient risk so that repaired endoscopes always meet optimal performance standards.
If you have any needs for flexible endoscope accessories, such as insertion tubes, light guides, biopsy channels, air/water channels, flexures and assemblies, flex rubbers and meshes, etc., please contact our sales team and we will be here to meet your needs!
