High Quality Coil Pipe Assembly For Olympus GIF-XP190N Ultra-slim Gastroscope

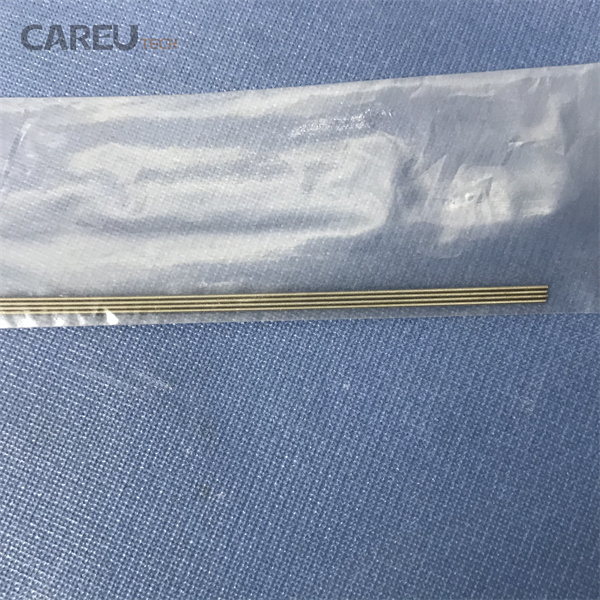

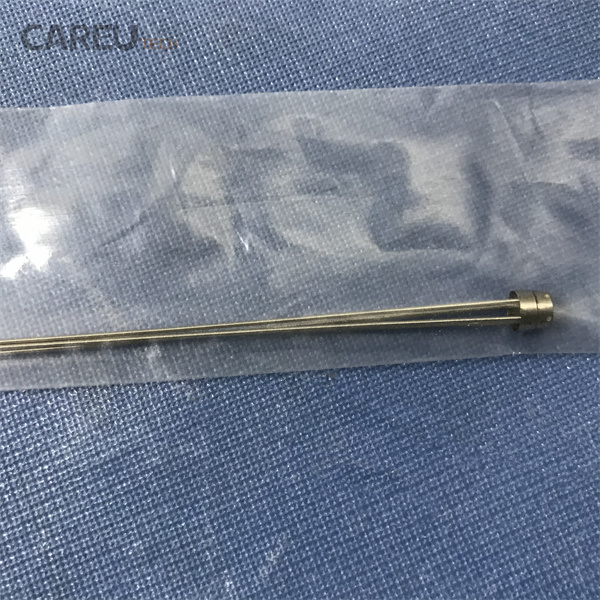

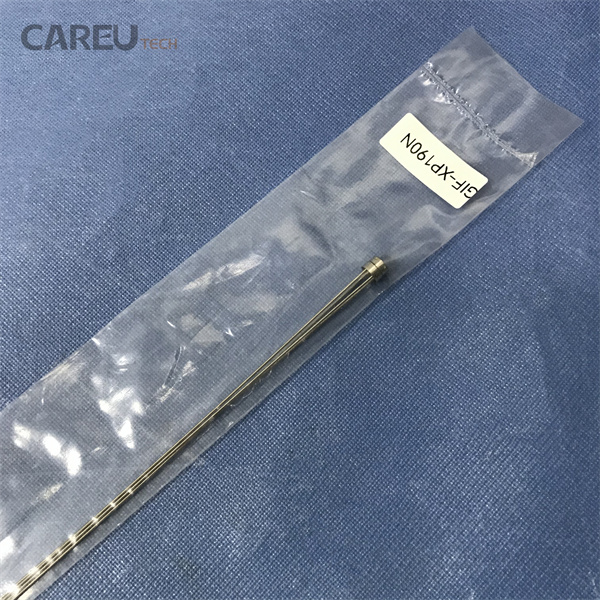

Coil Pipe Assembly For Olympus GIF-XP190N Ultra-slim Gastroscope

► Brief Description

The Bending Section Coil Pipe Assembly is a critical internal component located at the distal end of the Olympus GIF-XP190N gastroscope. It serves as the flexible framework that enables the endoscope’s tip to angulate smoothly in multiple directions. Manufactured using high-precision, medical-grade 304 Stainless Steel (304SS), this assembly provides structural support while protecting internal components—such as the light guides, image fibers/wires, and air/water channels—from being crushed or kinked during maximum articulation.

► Features

• High-Angle Articulation Control: Supports a wide range of motion, particularly the 210° upward angulation, allowing physicians to navigate tight anatomical spaces (such as transnasal insertion or severe esophageal strictures) and perform retroflexion maneuvers in the stomach.
• Internal Conduit Protection: The internal coil pipes act as a protective guide path for internal lines, ensuring that the 2.2 mm instrument/suction channel, dual light guides, and air/water nozzles do not become pinched, kinked, or damaged when the tip bends sharply.
• Torque Transmission & Structural Rigidity: Translates the tension from the control knob steering wires into precise, real-time physical movement at the endoscope tip. It balances flexibility with enough rigid stability to withstand suction forces and instrument passage.
• Durability & Biocompatibility: Constructed from medical-grade steel to resist corrosion and structural fatigue from frequent chemical reprocessing, high-level disinfection (HLD), or electrosurgery currents.

► Specification

► FAQ

What are the common signs that the Bending Section Coil Pipe Assembly needs to be replaced?

A: You should inspect or replace the assembly if the endoscope exhibits any of the following issues:

• Stiff or jerky angulation: The control knobs feel tight, or the tip does not move smoothly.

• Loss of maximum bending angle: The endoscope fails to reach its 210°upward retroflexion.

• Knotted or play in the tip: The distal tip feels loose or fails to maintain its position when locked.

• Internal component damage: Repeated resistance when passing baskets or forceps through the instrument channel, often caused by a collapsed internal coil ring.

► More service

Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
