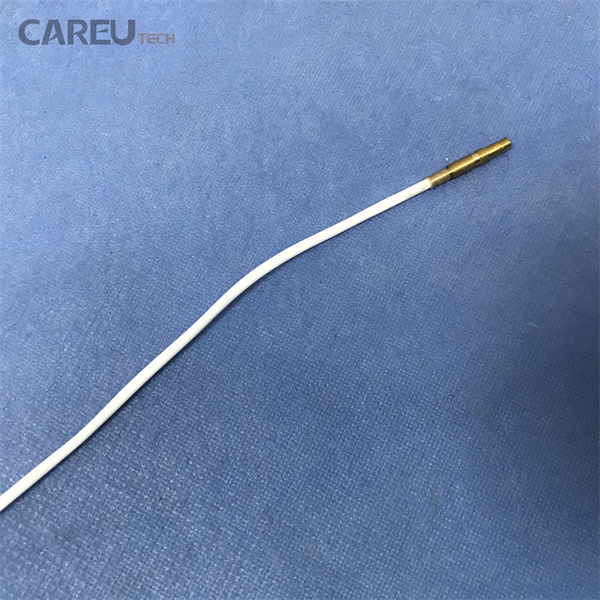

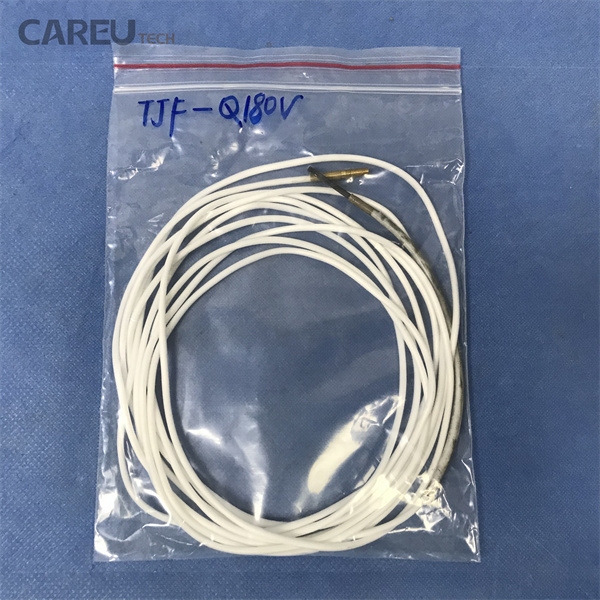

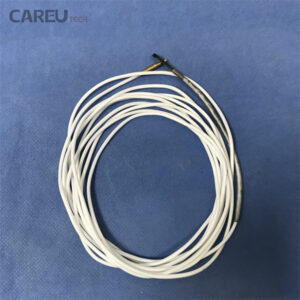

Light Guide Bundles For Olympus TJF-Q180V Duodenoscope
Apple Shopping Event
Hurry and get discounts up to 20% Read more
► Brief Description
The Light Guide Bundle for the Olympus EVIS EXERA II TJF-Q180V Duodenoscope is a core internal component responsible for light transmission. Composed of thousands of high-purity optical glass fibers, this bundle channels high-intensity light from the external medical light source (such as the Olympus CLV-180) through the endoscope’s universal cord and insertion tube, projecting it out via the light guide lenses at the distal end.
Because the TJF-Q180V is widely used for complex Endoscopic Retrograde Cholangiopancreatography (ERCP) procedures, a premium, structurally sound light guide bundle is critical to maintaining optimal visualization and supporting advanced imaging technologies like Narrow Band Imaging (NBI).
► Features
- High-Efficiency Light Transmission: It acts as the primary conduit for light, transferring illumination from the light source connector to the target anatomical site (the duodenum and major duodenal papilla) with minimal optical loss or heat generation.

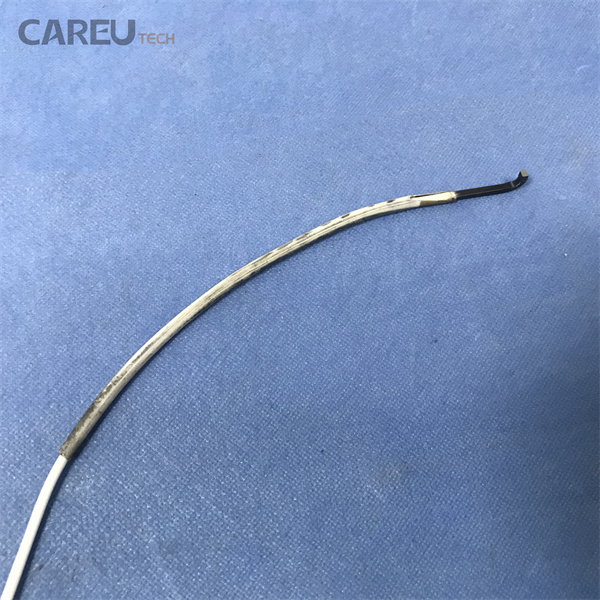

- Dual-Path Distal Illumination: Because the TJF-Q180V features a side-viewing optical system with dual light guide lenses flanking the objective lens, the bundle bifurcates near the distal tip. This ensures uniform, shadow-reduced illumination across the entire 100°field of view.
- Full Support for Narrow Band Imaging (NBI): It maintains the strict spectral integrity required for NBI. By transmitting specific wavelengths of blue and green light accurately, it allows endoscopists to clearly distinguish mucosal capillaries and tissue structures during ERCP.
- Structural Flexibility and Durability: The bundle is specifically engineered to bend smoothly within the endoscope’s 4-way angulation section (120°Up, 90°Down, 110° Right,90°Left) without snapping individual fiber strands, ensuring a long operational lifespan despite rigorous reprocessing and mechanical maneuvering.
► Specification
| Brand | Olympus |
| Model | TJF-Q180V |
| Condition | Brand new |
| Series | Light Guide Bundles |
| Material Composition | High-transmittance medical-grade optical glass fibers |
| MOQ | 1 Piece |

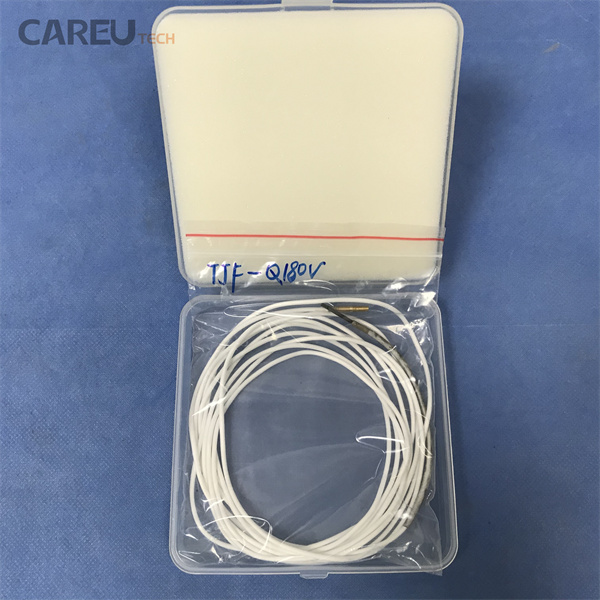

| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
All new aftermarket parts come with a 1-Year warranty. Quality is the first thing we consider. Check out our Warranty Assistance for more details.
All expedited shipping so you can get your medical machine back in action, fast. Check out our Shipping Policy for more details.
We prioritize your satisfaction. If your order doesn't meet your expectations within 90 days, you may be eligible for a refund. See our Easy Return Policy for details.
Description
Light Guide Bundles For Olympus TJF-Q180V Duodenoscope
► Brief Description
The Light Guide Bundle for the Olympus EVIS EXERA II TJF-Q180V Duodenoscope is a core internal component responsible for light transmission. Composed of thousands of high-purity optical glass fibers, this bundle channels high-intensity light from the external medical light source (such as the Olympus CLV-180) through the endoscope’s universal cord and insertion tube, projecting it out via the light guide lenses at the distal end.
Because the TJF-Q180V is widely used for complex Endoscopic Retrograde Cholangiopancreatography (ERCP) procedures, a premium, structurally sound light guide bundle is critical to maintaining optimal visualization and supporting advanced imaging technologies like Narrow Band Imaging (NBI).
► Features
- High-Efficiency Light Transmission: It acts as the primary conduit for light, transferring illumination from the light source connector to the target anatomical site (the duodenum and major duodenal papilla) with minimal optical loss or heat generation.
- Dual-Path Distal Illumination: Because the TJF-Q180V features a side-viewing optical system with dual light guide lenses flanking the objective lens, the bundle bifurcates near the distal tip. This ensures uniform, shadow-reduced illumination across the entire 100°field of view.
- Full Support for Narrow Band Imaging (NBI): It maintains the strict spectral integrity required for NBI. By transmitting specific wavelengths of blue and green light accurately, it allows endoscopists to clearly distinguish mucosal capillaries and tissue structures during ERCP.
- Structural Flexibility and Durability: The bundle is specifically engineered to bend smoothly within the endoscope’s 4-way angulation section (120°Up, 90°Down, 110° Right,90°Left) without snapping individual fiber strands, ensuring a long operational lifespan despite rigorous reprocessing and mechanical maneuvering.
► Specification
| Brand | Olympus |
| Model | TJF-Q180V |
| Condition | Brand new |
| Series | Light Guide Bundles |
| Material Composition | High-transmittance medical-grade optical glass fibers |
| MOQ | 1 Piece |
| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
► FAQ
What are the symptoms of a failing or damaged light guide bundle in a TJF-Q180V endoscope?
A: The most common indicators include:
-
Dim or yellowish image: The overall illumination on the monitor appears weak or discolored.
-
Shadows or uneven lighting: One side of the screen is darker than the other (common in the TJF-Q180V because its dual-light guide paths can fail independently).
-
Visible black dots at the connector: If you look closely at the light guide connector pin, you will see tiny black spots, which represent broken or burned individual fiber optic strands.
► More service
Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
► About Us
CareUtech is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.
Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
►What we can do
Product details
In case you have any questions or concerns, don’t be shy to get in touch with our support team. Our experts will help you select the right type of endoscope accessories, providing you with the best advice possible.
Product details
In case you have any questions or concerns, don’t be shy to get in touch with our support team. Our experts will help you select the right type of endoscope accessories, providing you with the best advice possible.
Description
Light Guide Bundles For Olympus TJF-Q180V Duodenoscope
► Brief Description
The Light Guide Bundle for the Olympus EVIS EXERA II TJF-Q180V Duodenoscope is a core internal component responsible for light transmission. Composed of thousands of high-purity optical glass fibers, this bundle channels high-intensity light from the external medical light source (such as the Olympus CLV-180) through the endoscope’s universal cord and insertion tube, projecting it out via the light guide lenses at the distal end.
Because the TJF-Q180V is widely used for complex Endoscopic Retrograde Cholangiopancreatography (ERCP) procedures, a premium, structurally sound light guide bundle is critical to maintaining optimal visualization and supporting advanced imaging technologies like Narrow Band Imaging (NBI).
► Features
- High-Efficiency Light Transmission: It acts as the primary conduit for light, transferring illumination from the light source connector to the target anatomical site (the duodenum and major duodenal papilla) with minimal optical loss or heat generation.
- Dual-Path Distal Illumination: Because the TJF-Q180V features a side-viewing optical system with dual light guide lenses flanking the objective lens, the bundle bifurcates near the distal tip. This ensures uniform, shadow-reduced illumination across the entire 100°field of view.
- Full Support for Narrow Band Imaging (NBI): It maintains the strict spectral integrity required for NBI. By transmitting specific wavelengths of blue and green light accurately, it allows endoscopists to clearly distinguish mucosal capillaries and tissue structures during ERCP.
- Structural Flexibility and Durability: The bundle is specifically engineered to bend smoothly within the endoscope’s 4-way angulation section (120°Up, 90°Down, 110° Right,90°Left) without snapping individual fiber strands, ensuring a long operational lifespan despite rigorous reprocessing and mechanical maneuvering.
► Specification
| Brand | Olympus |
| Model | TJF-Q180V |
| Condition | Brand new |
| Series | Light Guide Bundles |
| Material Composition | High-transmittance medical-grade optical glass fibers |
| MOQ | 1 Piece |
| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
► FAQ
What are the symptoms of a failing or damaged light guide bundle in a TJF-Q180V endoscope?
A: The most common indicators include:
-
Dim or yellowish image: The overall illumination on the monitor appears weak or discolored.
-
Shadows or uneven lighting: One side of the screen is darker than the other (common in the TJF-Q180V because its dual-light guide paths can fail independently).
-
Visible black dots at the connector: If you look closely at the light guide connector pin, you will see tiny black spots, which represent broken or burned individual fiber optic strands.
► More service
Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
► About Us
CareUtech is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.
Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
►What we can do
Customer Reviews
Related Products
Fix Once Right, Save Replacement Costs
Flexible endoscopes are among the most advanced and most used devices in the healthcare environment. As their use continues to expand, they are a critical component in improving patient surgical outcomes.
However, without the right quality assurance services, they can also present infection risks to customers, leading to significant avoidable service costs over the life of the device.
Long-term replacement or good accessory maintenance is necessary to extend the life of your endoscope equipment, and CareU Tech is committed to reducing service costs and minimizing patient risk so that repaired endoscopes always meet optimal performance standards.
If you have any needs for flexible endoscope accessories, such as insertion tubes, light guides, biopsy channels, air/water channels, flexures and assemblies, flex rubbers and meshes, etc., please contact our sales team and we will be here to meet your needs!
